Yuqori intensivlik LED chiroq
30-280 Yuqori intensivlik Leads Streets Streets Streets Streets Streets Streets Streets Streets Street Set-Scrisection ScriseMpresle Lins T2S / T2M / T2MSOPREAFARE SHART AYOLLARI IP66 / IK08.SNAP montaji Shisha panel, yopishqoqsiz o'rnatilgan. Tasdiqlangan ixtiyoriy xususiyatlarni boshqarish: Zigbee, PLC, NB-iotdaylight tugmasi: Fotoccell birlashtirish mumkin
- Mahsulotni tanishtirish
30-280 yuqori intensivlik LED ko'cha chiroqlari
Patent xususiy mog'or, birlashtirilgan pivali kasting al, yuqori samaradorlik, 200lm / w mavjud, professional Anti-Mewary PC Lins T2S / T2M / T3M / T3M
Himoya darajasi IP66 / IK08. SNAP montaji, asbobni bepul demontaj qilish
Qo'shimcha ixtiyoriy xususiyatlar
Yoritish nazorati: ZigBee, PLC, NB-IOT
Kunduzgi kalit: Fotosuratlar birlashtirish mumkin.
Dimming: Talab qilish uchun ixtiyoriy xiralashtirish.

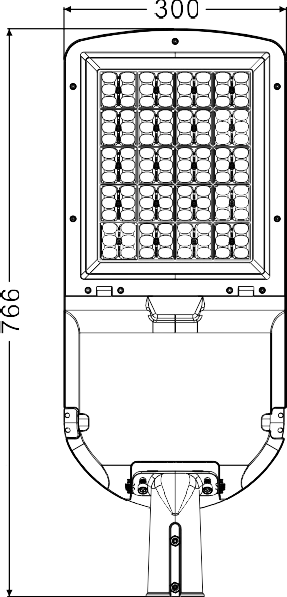

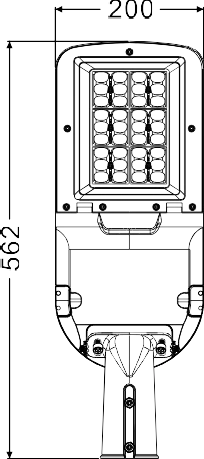

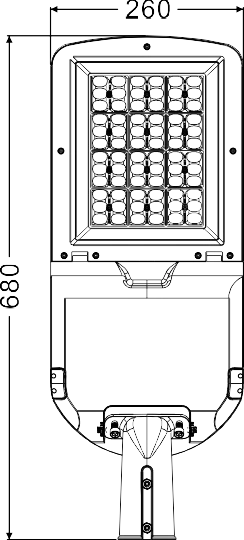

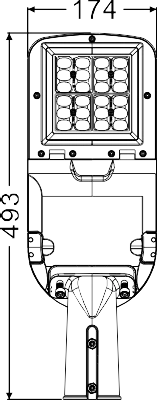

O'lchamlar:
30W-60W 70W-80W 90W-120W
130W-180W 190W-280W
Texnik parametr:
|
Mahsulot raqami |
Rl-s7b -50 w |
Rl-s7b -75 w |
Rl-s7b -100 w |
Rl-s7b -150 w |
Rl-s7b -200 w |
Rl-s7b -250 w |
|
|
Chiroq hajmi(mm) |
493*174*108 |
562*200*108 |
607*240*108 |
680*260*108 |
766*300*108 |
766*300*108 |
|
|
Material |
ADC12 |
||||||
|
Kuchlanishi |
AC100V -240 V 50 / 60Hz |
||||||
|
Kuch |
30-60W |
70-80W |
90-120W |
130-180W |
190-280W |
190-280W |
|
|
LED turi |
OSRAM / Lamiledlar / Tiandian 5050/3030 |
||||||
|
LED miqdori |
5050 (6- -1 linzalarida) |
24PClar |
36PCS |
54pcs |
72PCS |
120pcs |
120pcs |
|
5050 (8- -1 linzalarida) |
32pcs |
48PC |
72PCS |
96PC |
160pcs |
160pcs |
|
|
5050 (10- -1 linzalarida) |
40pcs |
60 gcs |
90mpok |
120pcs |
200 Iltilar |
200 Iltilar |
|
|
3030 ({1}} -1 linzalarida) |
64pcs |
96PC |
144PC |
192PClar |
320pcs |
320pcs |
|
|
3030 ({1}} -1 linzalarida) |
96PC |
144PC |
216pc |
288pcs |
480PC |
480PC |
|
|
Yorqin oqim |
5050 (6- -1 linzalarida) |
4800-9600 lm |
11200-12800 lm |
14400-19200 lm |
20800-28800 lm |
30400-44800 lm |
30400-44800 lm |
|
5050 (8- -1 linzalarida) |
5400-10800 lm |
12600-14400 lm |
16200-21600 lm |
23400-32400 lm |
34200-50400 lm |
34200-50400 lm |
|
|
5050 (10- -1 linzalarida) |
6000-12000 lm |
14000-16000 lm |
18000-24000 lm |
26000-36000 lm |
38000-56000 lm |
38000-56000 lm |
|
|
3030 ({1}} -1 linzalarida) |
4200-8400 lm |
9800-11200 lm |
12600-16800 lm |
18200-25200 lm |
26600-39200 lm |
26600-39200 lm |
|
|
3030 ({1}} -1 linzalarida) |
4800-9600 lm |
11200-12800 lm |
14400-19200 lm |
20800-28800 lm |
30400-44800 lm |
30400-44800 lm |
|
|
Rang harorati |
Issiq oq |
3000-4000K |
|||||
|
Neytral oq |
4000-5000K |
||||||
|
Salqin oq |
5000-6000K |
||||||
|
Nurli burchak |
6- -1 ob'ektiv |
T2S/T2M/T3M |
|||||
|
8- -1 ob'ektiv |
T2S/T2M/T3M |
||||||
|
10- -1 ob'ektiv |
T2S/T2M/T3M |
||||||
|
16- -1 ob'ektiv |
T2S/T2M/T3M |
||||||
|
24- -1 ob'ektiv |
T2S/T2M/T3M |
||||||
|
Rangni ko'rsatish indeksi (CRI) |
Ra>70 |
||||||
|
Elektr energiyasini etkazib berish |
>90% |
||||||
|
LED LUMUINION EI FFI Catient |
5050 (6- -1 linzalarida) |
160lm / w |
|||||
|
5050 (8- -1 linzalarida) |
180lm / w |
||||||
|
5050 (10- -1 linzalarida) |
200lm / w |
||||||
|
3030 ({1}} -1 linzalarida) |
140lm / w |
||||||
|
3030 ({1}} -1 linzalarida) |
160lm / w |
||||||
|
LED haydovchisi |
Ayni paytda / mozaik / theocrronika |
||||||
|
Quvvat omili (PF) |
>0.95 |
||||||
|
Umumiy garmonik buzilish (thD) |
15% dan kam yoki unga teng |
||||||
|
Haroratning ishlash chegarasi |
-40 ilmiy darajasi -50 ilmiy darajasi |
||||||
|
IP / IK kursi |
IP66 / IK08 |
||||||
|
Kafolat |
5 yil |
||||||
|
Karton hajmi (mm) |
513*199*163 |
582*225*164 |
626*265*164 |
700*285*164 |
785*325*164 |
785*325*164 |
|
|
Sof og'irlik (kg) |
2.67 |
3.12 |
4.28 |
4.56 |
6.36 |
6.36 |
|
|
Yalpi vazn (kg) |
3.1 |
3.7 |
4.9 |
5.3 |
7.2 |
7.2 |
|
Yengil taqsimlash:
Taklif qilingan linzalar variantlari. Turli xil ob'ektivlar uchun turli xil dasturlar uchun maxsus echimlarga imkon beradigan turli xil imkoniyatlar mavjud.
T2S T2M T3M
